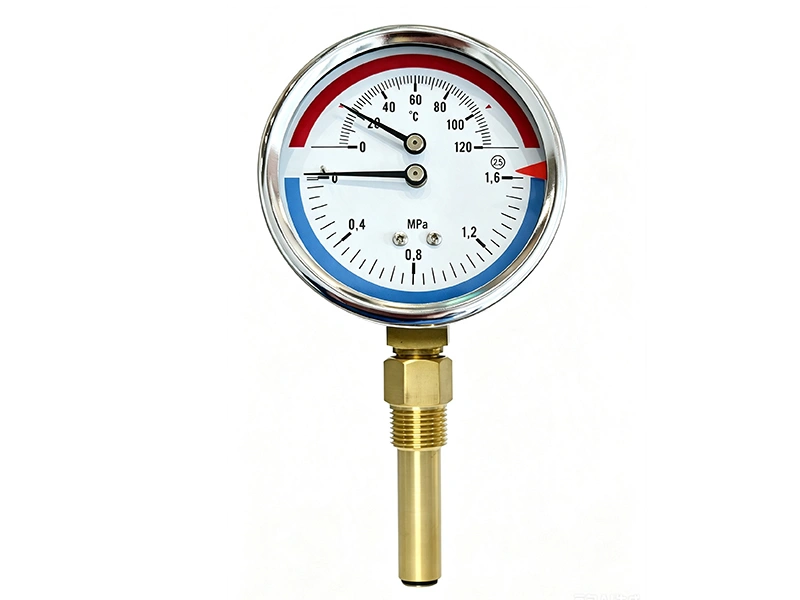

119C Custom-Engineered Thermo-Manometer
Product Details
- Nominal size: 80 mm / 100 mm
- Case: black steel case, chrome plated ring
- Thread: 1/4”, 1/2”, NPT, BSP, BSPT, M20×1.5 optional
- Process connection: brass
- Pressure element: copper alloy
- Movement: copper alloy
- Dial: aluminum, customized scale and logo
- Pointer: aluminum, black or white, customizable
- Window: snap-in plastic, or snap-in plastic with red pointer
- Accuracy class: ±1.6% / ±2.5%
- Scale ranges: 0–16 bar; 0–150°C
- Protection grade: IP40
Customization
- Logo printing on dial
- Units: bar / psi, MPa / kg/cm², or kPa / psi
- Range: 0–16 bar
- Thread options: 1/4”, 1/2”

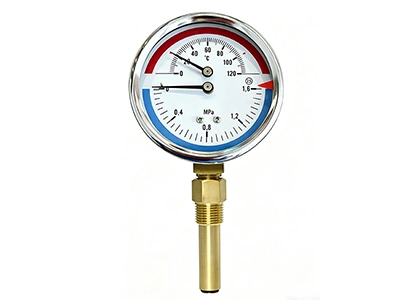

- Mounting: radial (bottom) / axial (back)
- Case material: black iron, chrome-plated iron, stainless steel, or plastic
- Window material: glass or polycarbonate (PC)
- Accuracy classes: 1.5 / 1.6 / 2.5
- Temperature range: 0–120°C
- Brass sleeve length: 46–100 mm
