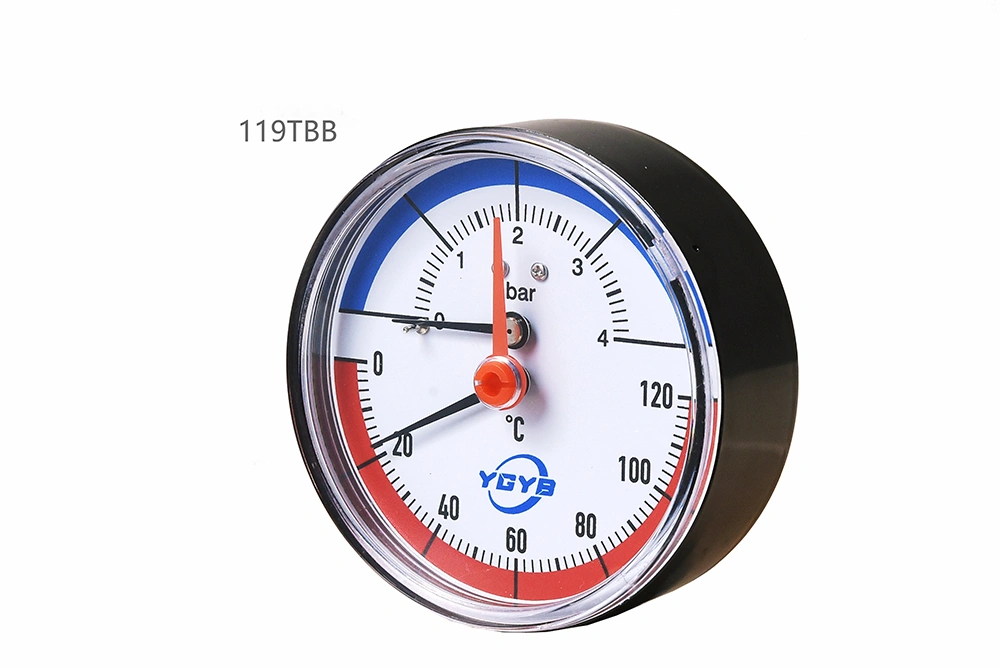

119T Economical Thermo-Manometer (80mm)
Product Details
- Nominal size: 80 mm; 63 mm; 100 mm
- Case: black steel case, non-bezel or chrome plated
- Thread: 1/4”, 1/2”, NPT, BSP, BSPT, M20×1.5 optional
- Process connection: brass
- Pressure element: copper alloy
- Movement: copper alloy
- Dial: aluminum, customized scale and logo
- Pointer: aluminum, black or white, customizable
- Window: plastic with red pointer, or tempered glass
- Accuracy class: ±1.6% / ±2.5%
- Scale ranges: 0–4 bar, 6 bar, 10 bar, 16 bar; 0–120°C
- Protection grade: IP54 / IP40
Customization
- Logo printing on dial
- Units: bar / psi, MPa / kg/cm², or kPa / psi
- Range: 0–16 bar
- Thread options: 1/4”, 1/2”

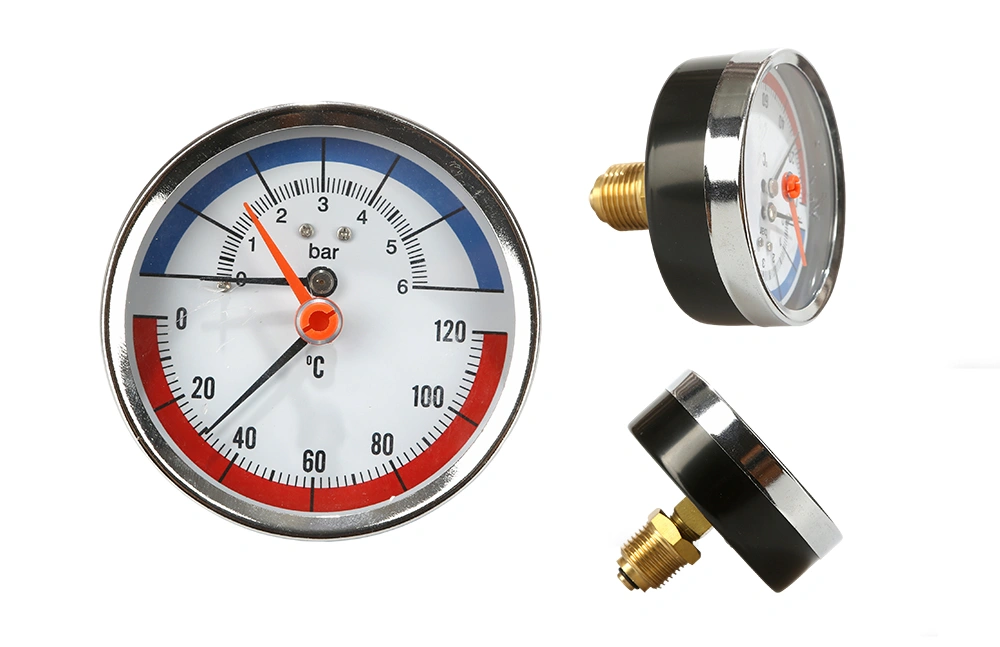

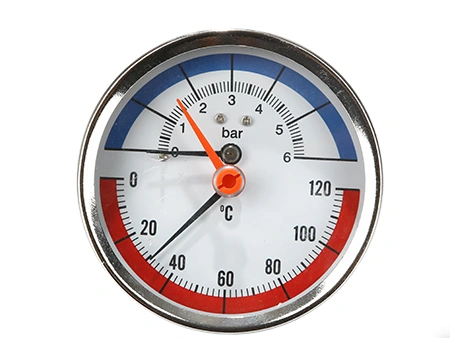

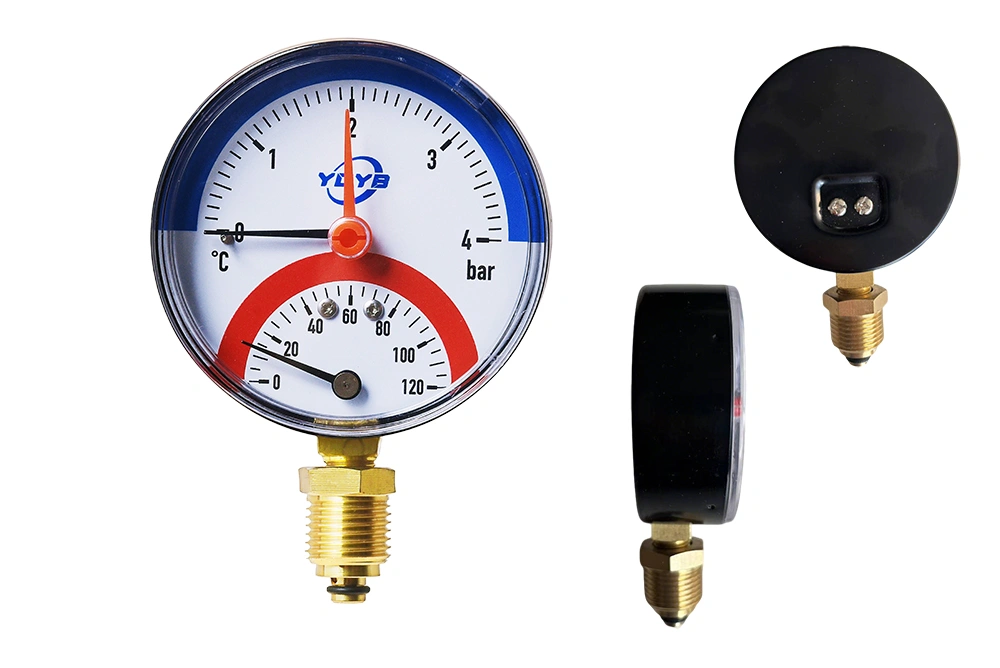

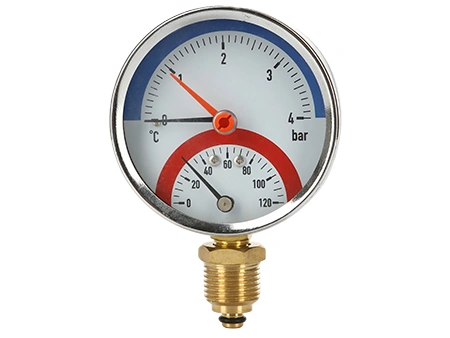

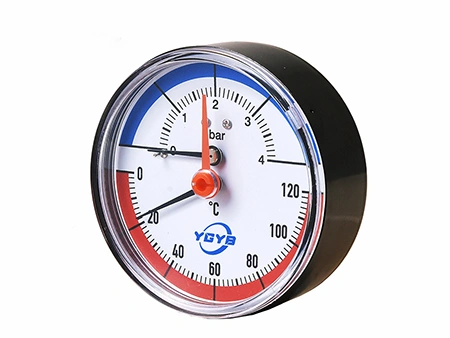

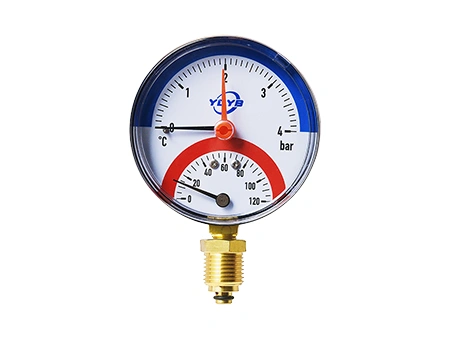

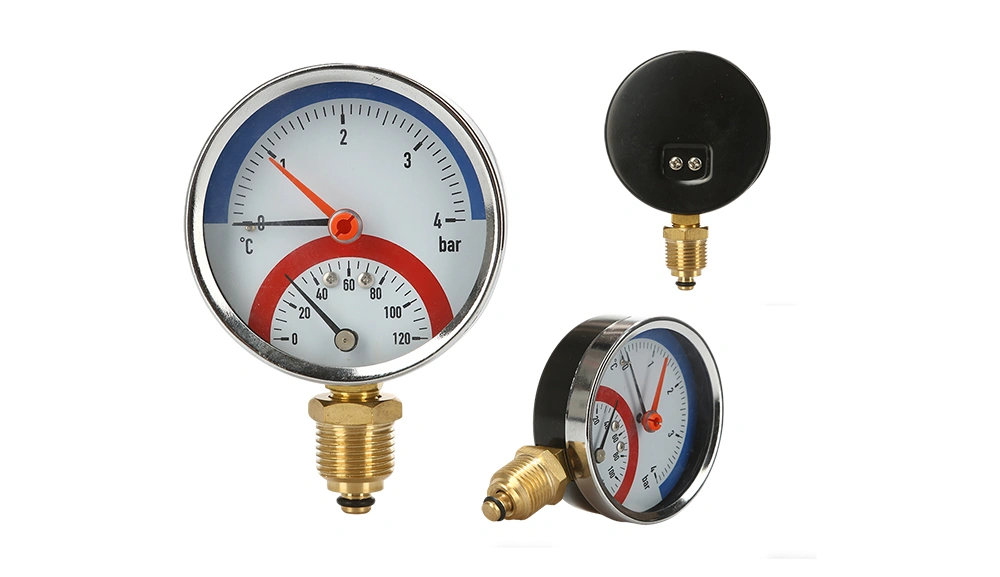

- Mounting: radial (bottom) / axial (back)
- Case material: black iron, chrome-plated iron, stainless steel, or plastic
- Window material: glass or polycarbonate (PC)
- Accuracy classes: 1.5 / 1.6 / 2.5
- Temperature range: 0–120°C
- Brass sleeve length: 46–100 mm
Applications
Typical applications include HVAC systems, hydraulic and pneumatic systems, pressure vessels and pipelines, refrigeration and cold chain systems, and water treatment and chemical industries.
Installation Dimensions
