Differential Pressure Transmitter
Differential pressure transmitters are designed to measure the pressure difference between two points in a system. They are widely used in industrial process control, petrochemical plants, water treatment, aerospace, and HVAC systems. They are primarily used for flow measurement, liquid level monitoring, filter blockage detection, and differential pressure measurement to help ensure safe, stable, and efficient system operation.

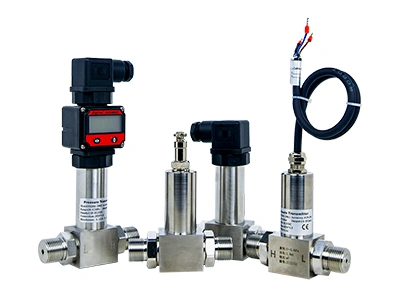

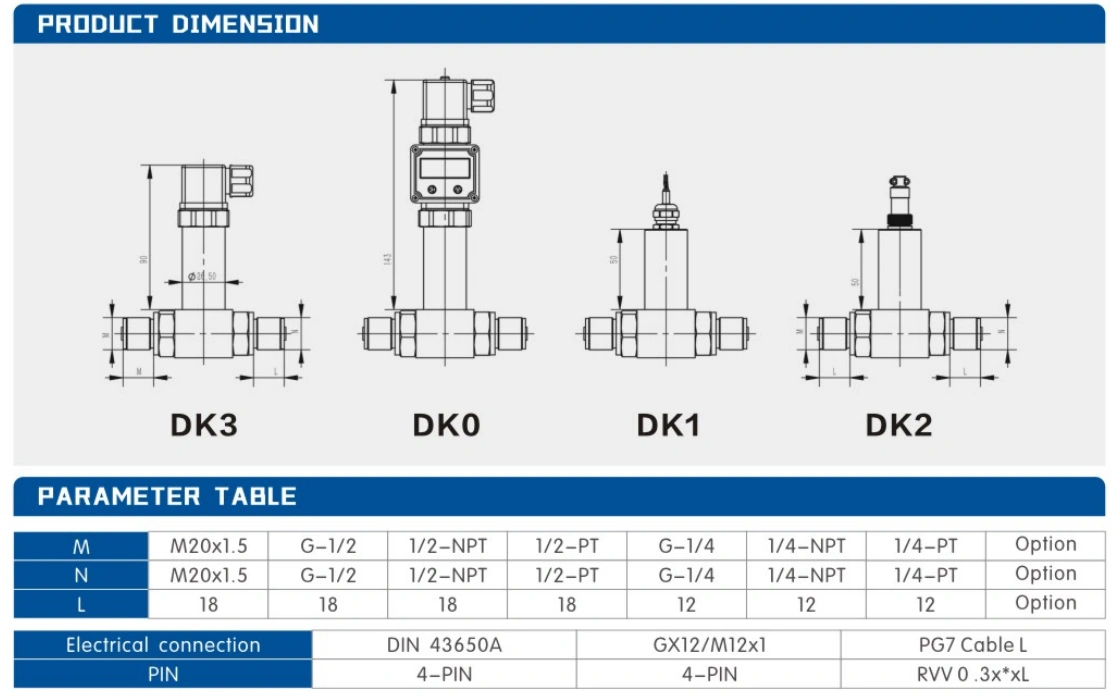

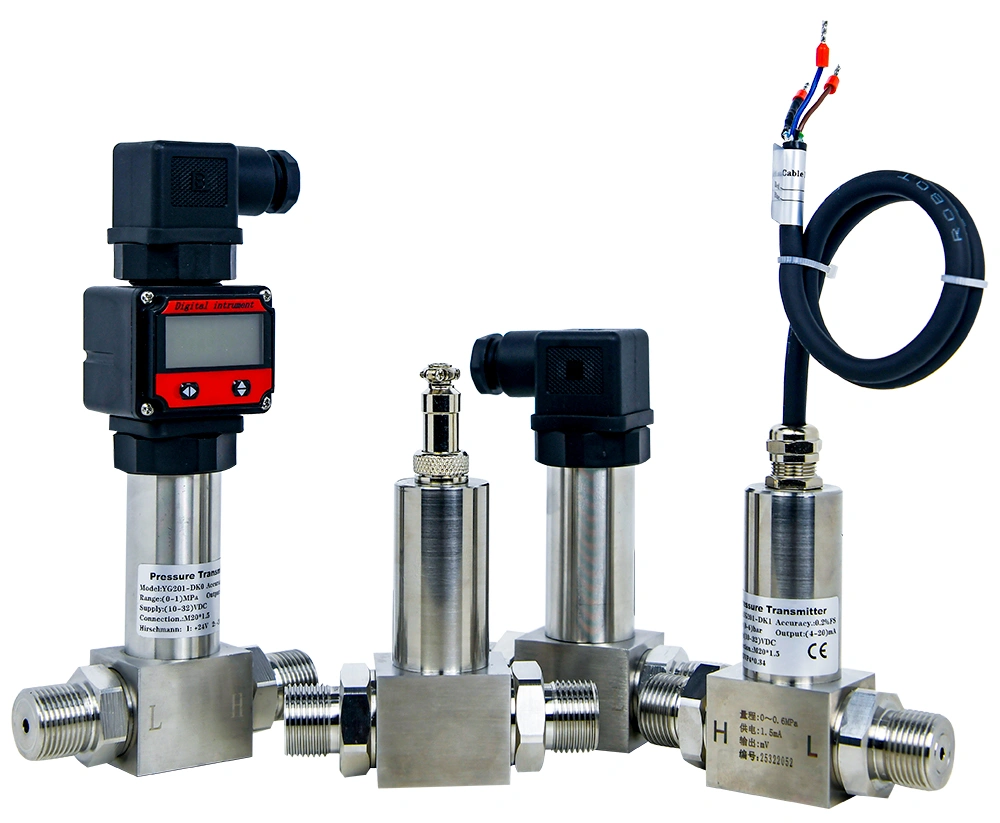

Differential Pressure Transmitter
The differential pressure transmitter adopts advanced piezoresistive differential sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter features a sealed stainless steel construction, supports multiple output signals, and includes reverse polarity protection. This cost-effective differential pressure transmitter provides reliable long-term operation and is widely used in industrial automation and food processing applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 10 MPa (see Table 1)
- Pressure type: DP
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: SUS304
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP65
- Certification: CE / EMC / Explosion-proof Ex
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH

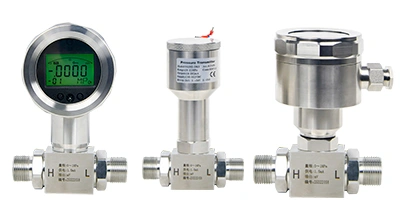

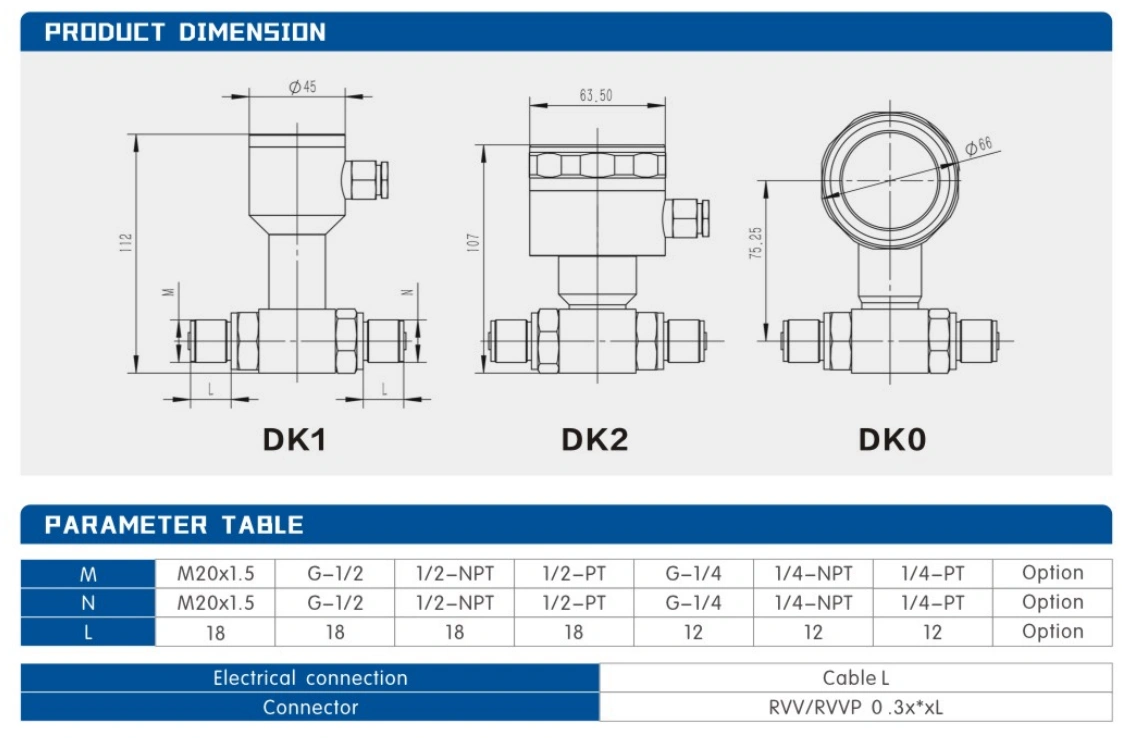

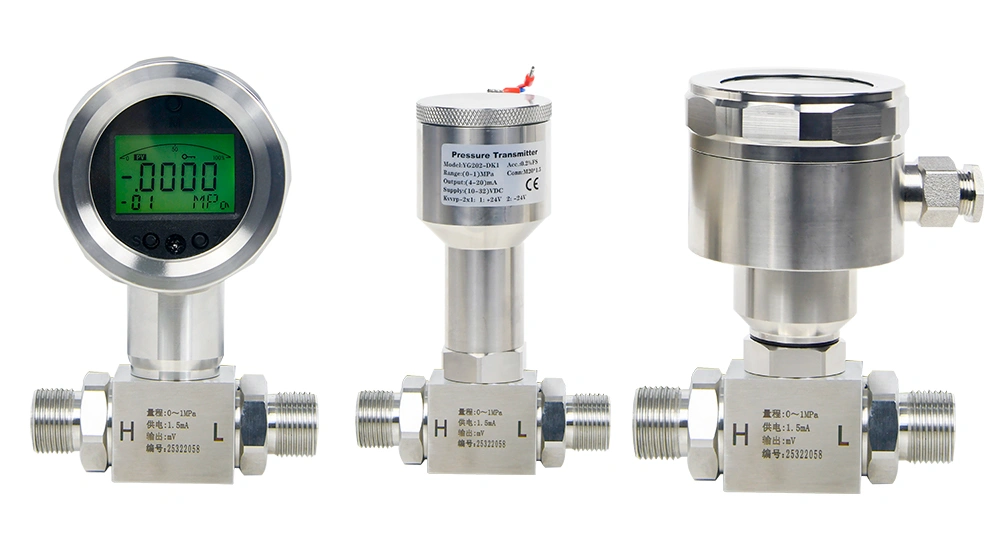

Differential Pressure Transmitter
The differential pressure transmitter adopts advanced piezoresistive differential sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter features a fully sealed stainless steel construction, supports multiple output signals, and includes reverse polarity protection. It provides reliable long-term operation and is widely used in industrial automation and food processing applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 10 MPa (see Table 1)
- Pressure type: DP
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: LCD / LED (optional)
- Housing material: SUS304
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP65
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH

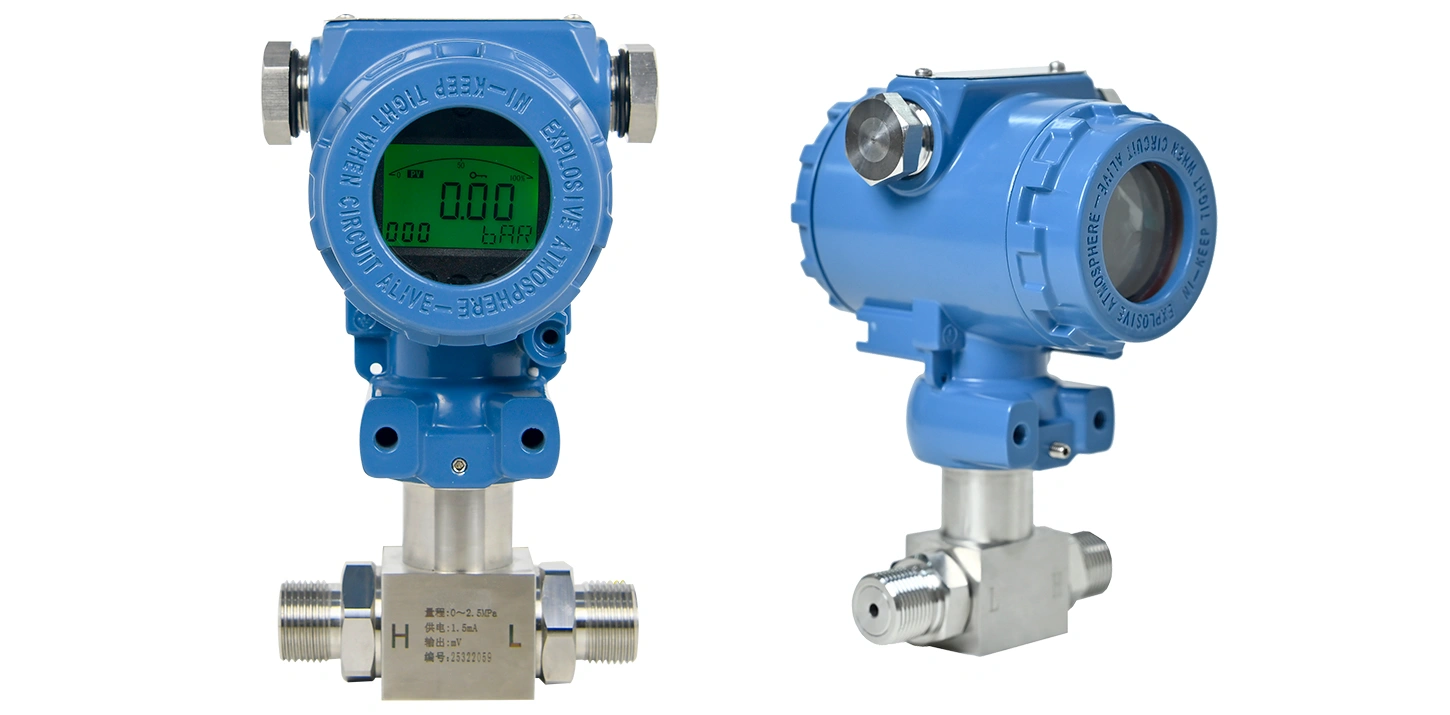

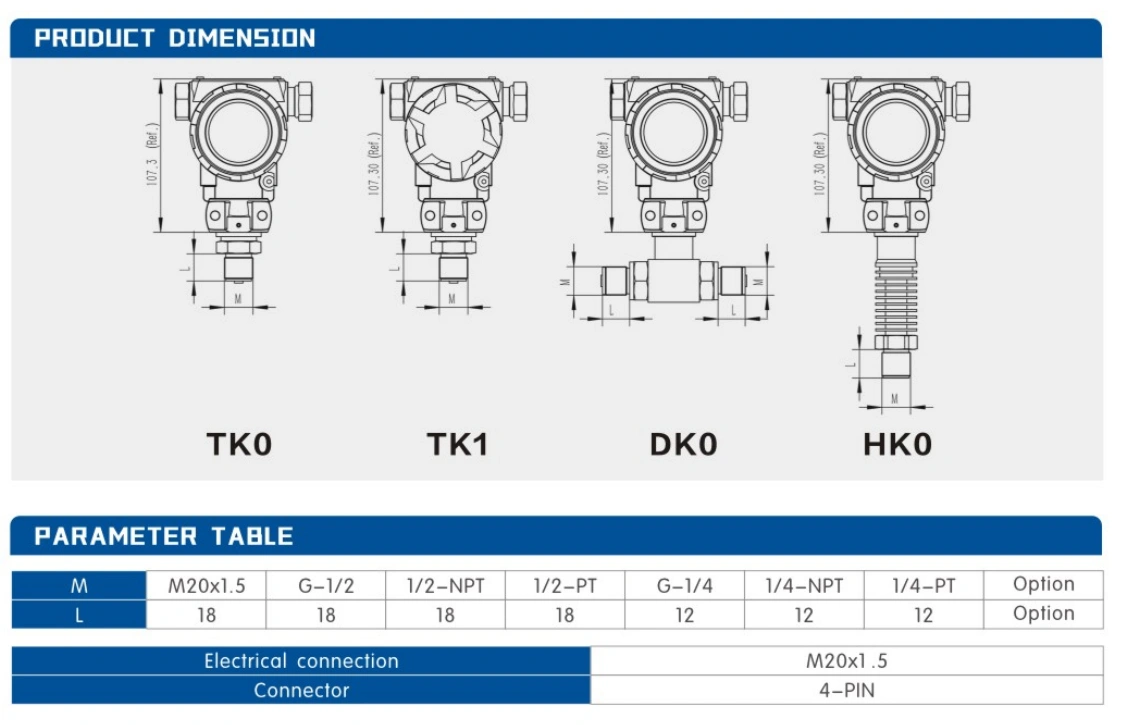

Differential Pressure Transmitter
The differential pressure transmitter adopts advanced piezoresistive sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The transmitter features a sealed 2088 housing, supports multiple output signals, and includes reverse polarity protection. It provides reliable long-term operation and is widely used in industrial automation, food processing, and chemical applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa (see Table 1)
- Pressure type: GP / AP / DP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: 2088 ADC12
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP67
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH
- Logo customization: Customer brand logo printing available
- Display: none / LCD / LED
- Pressure types: absolute pressure (AP), differential pressure (DP), gauge pressure (GP), compound pressure (CP)
- Output signal: no output, 4–20mA, 4–20mA + HART, RS485, 4–20mA + RS485, 0–5V, 0–10V
- Case material: 2088 housing, 3051 aluminum alloy, full stainless steel, rod-type stainless steel
- Process connection: 1/8", 1/4", 3/8", 1/2" optional
- Electrical connection: Hirschmann DIN 43650, M12 aviation plug, PG connector, cable outlet
- Accuracy class: 0.1% FS / 0.2% FS / 0.5% FS / 1.0% FS
- Power supply: 10–30V DC
- Pressure range: -100 kPa to 100 MPa (customizable)
