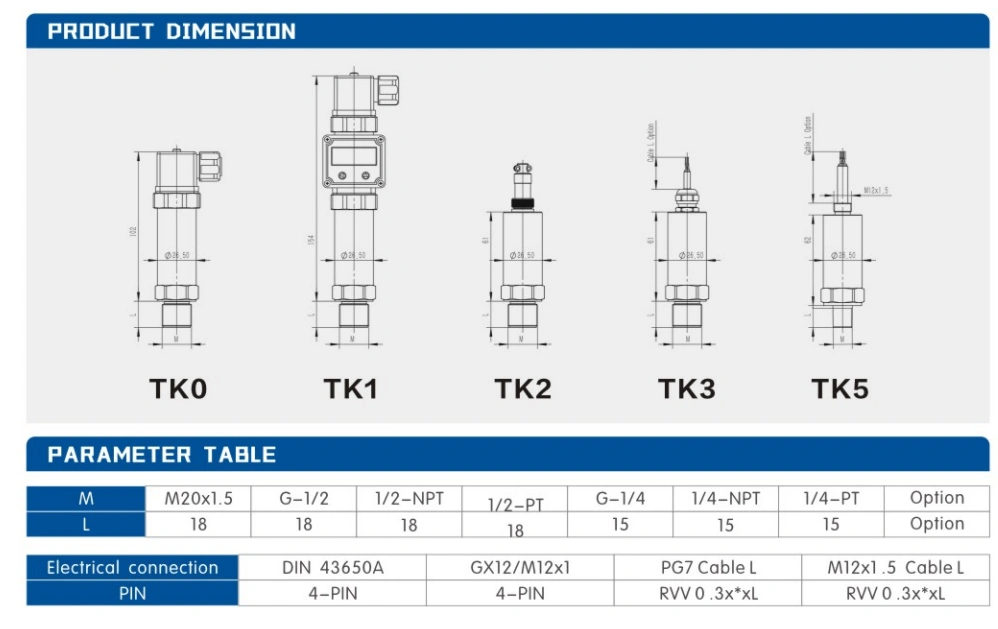

General Pressure Transmitter
General Pressure Transmitter

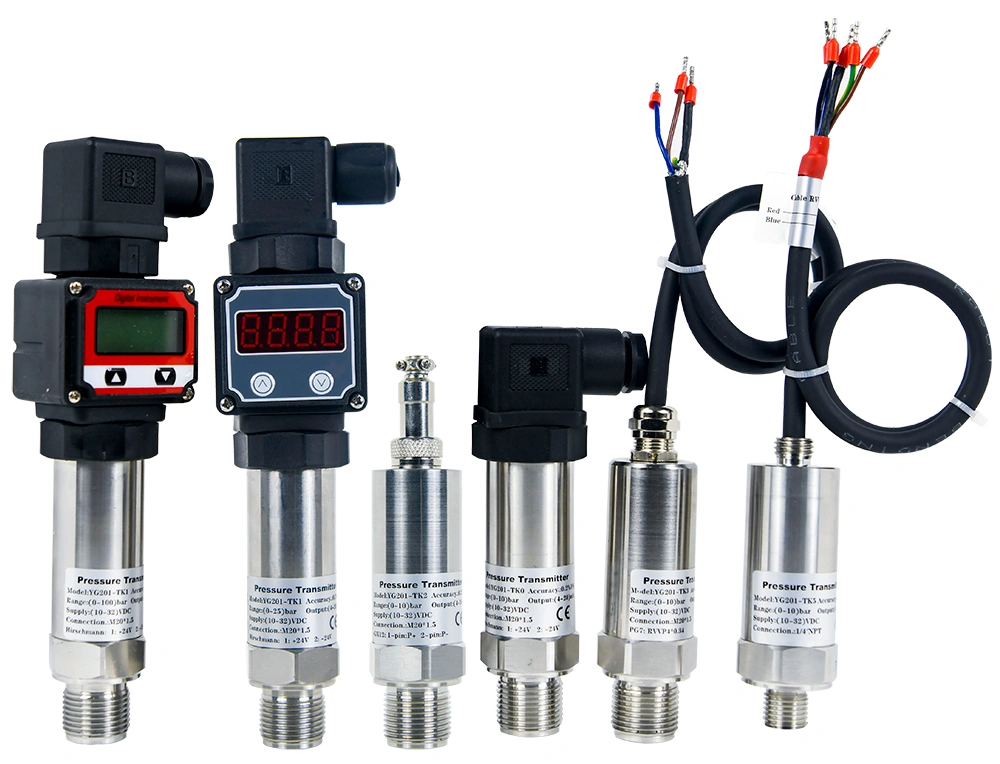

This pressure transmitter adopts advanced piezoresistive sensing technology with built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The pressure sensor unit is CE certified, built with a stainless-steel sealed housing and supports multiple output signals and a wide measurement range. It also includes reverse polarity protection and provides long-term stable operation. It is widely used in industrial automation, constant pressure water supply systems, pump and valve control, hydraulic systems, construction machinery, agricultural machinery, steel industry, and energy applications.
- Measured media: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa
- Pressure type: GP / AP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: SUS304
- Power supply: 10–30V DC
- Output signal: 4–20mA, RS485, HART, 0–5V, 0–10V, 0.5–4.5V (optional)
- Protection grade: IP65
- Operating temperature: -20°C to +60°C
- Storage temperature: -40°C to +80°C
- Humidity: 5–100% RH
- Certification: CE / EMC / Ex

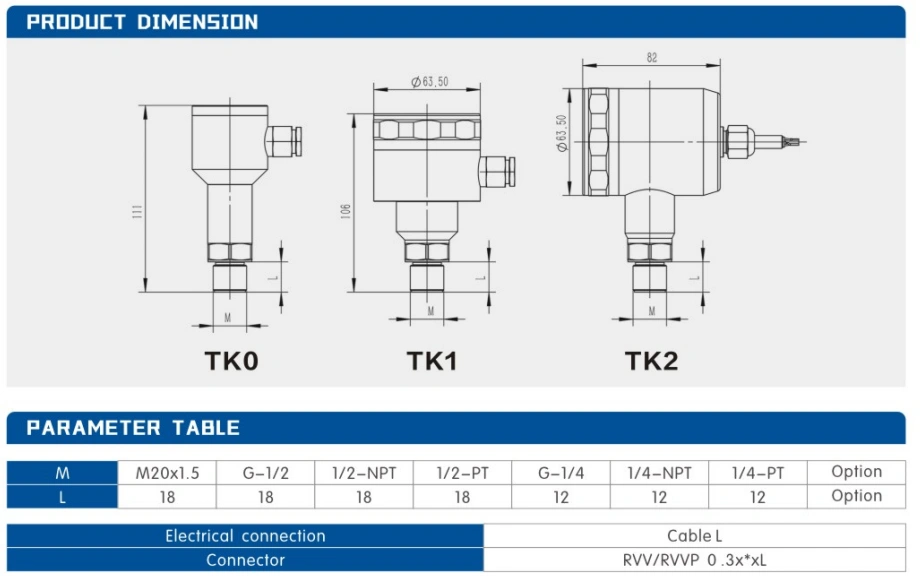

General Pressure Transmitter

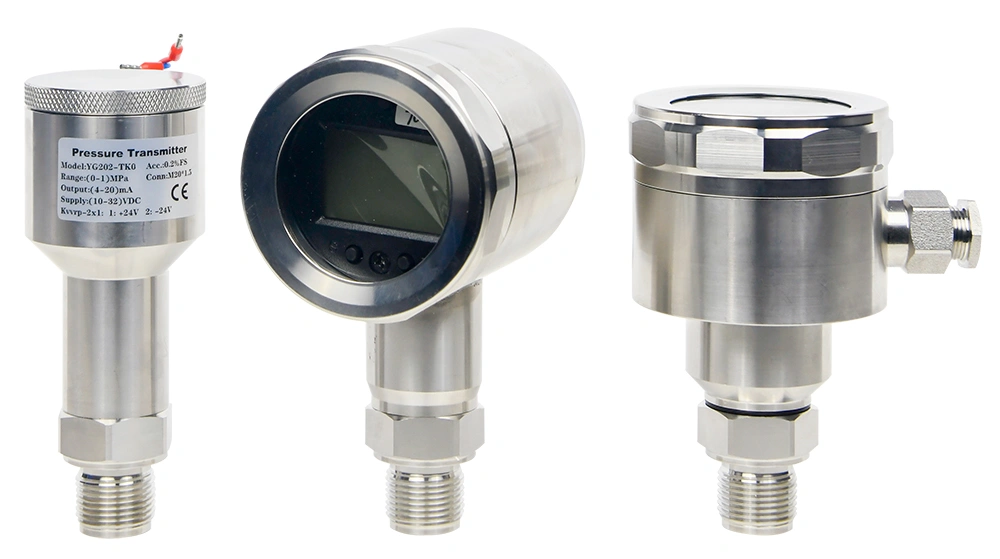

The all-stainless-steel pressure transmitter adopts advanced piezoresistive sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC compatibility. The CE certified pressure sensor unit is built with a full stainless-steel sealed housing and supports multiple output signals and a reverse polarity protection. It offers long-term stable operation and is widely used in industrial automation, food processing, and chemical applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa (see Table 1)
- Pressure type: GP / AP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: SUS304
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP65
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH

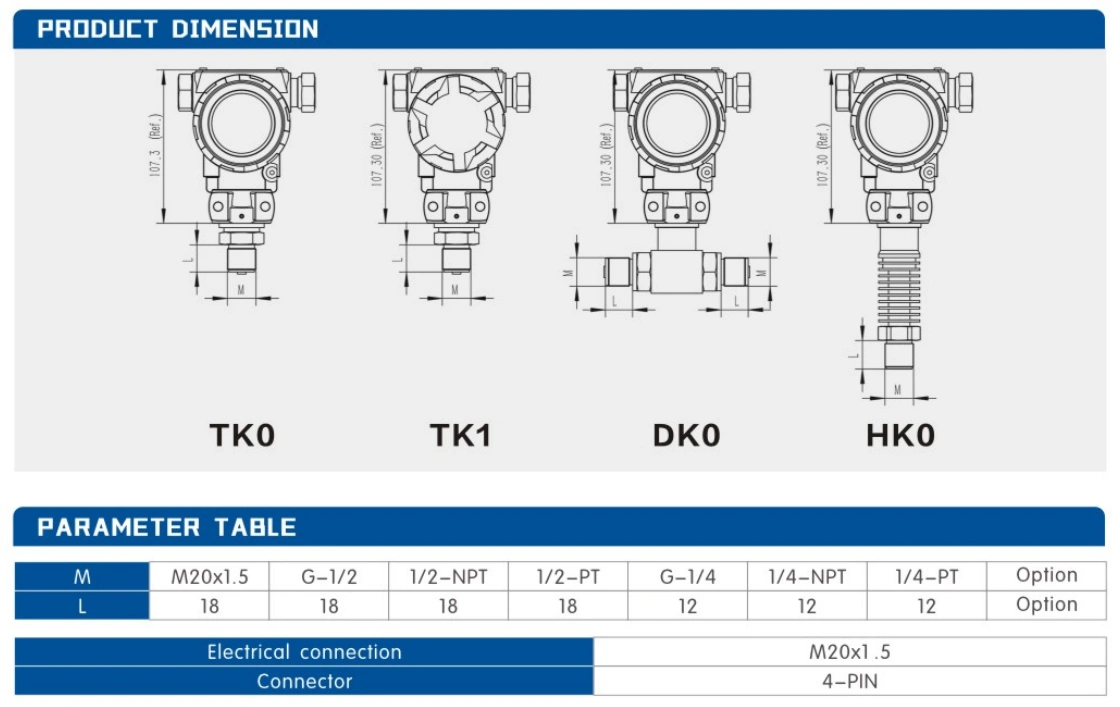

General Pressure Transmitter

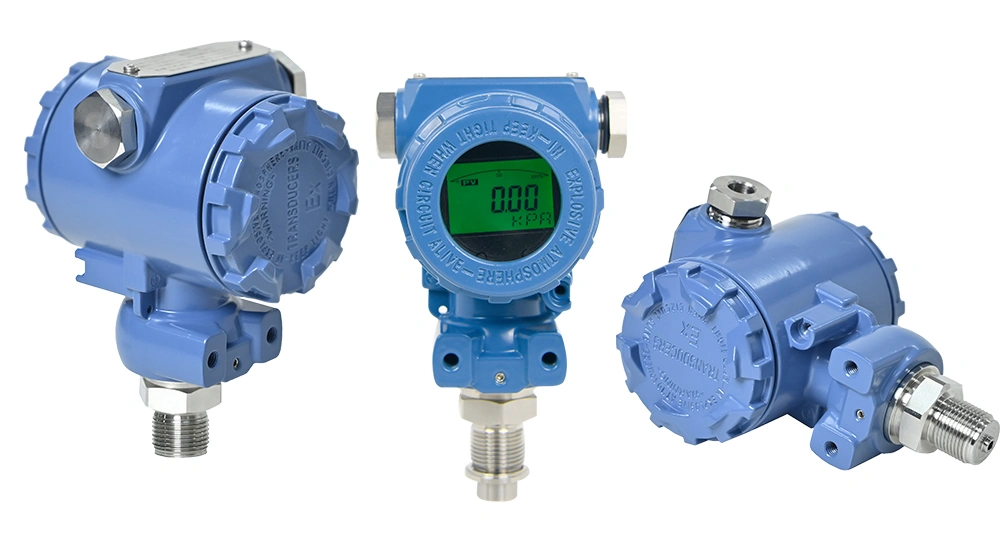

The pressure transmitter adopts advanced piezoresistive sensing technology with a built-in anti-interference amplification circuit. It features low temperature drift, high accuracy, stable performance, and strong EMC capability. The pressure sensing device complies with CE certification and uses a sealed 2088 housing structure. It supports multiple output signals and includes reverse polarity protection. This diaphragm-type pressure transmitter offers long-term stability and is widely used in industrial automation, food processing, and chemical applications.
- Measuring medium: gases, liquids, and gas-liquid mixtures compatible with wetted parts
- Pressure range: -100 kPa to 100 MPa (see Table 1)
- Pressure type: GP / AP / DP (optional)
- Accuracy: 0.1% FS / 0.2% FS / 0.5% FS (optional)
- Display: none / LCD / LED (optional)
- Housing material: 2088 ADC12
- Power supply: 10–30 VDC
- Output signal: 4–20 mA / RS485 / HART / 0–5 V / 0–10 V / 0.5–4.5 V (optional)
- Protection grade: IP67
- Certification: CE / EMC
- Operating conditions:
Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Humidity: 5–100% RH
- Logo customization: Customer brand logo printing available
- Display: none / LCD / LED
- Pressure types: absolute pressure (AP), differential pressure (DP), gauge pressure (GP), compound pressure (CP)
- Output signal: no output, 4–20mA, 4–20mA + HART, RS485, 4–20mA + RS485, 0–5V, 0–10V
- Case material: 2088 housing, 3051 aluminum alloy, full stainless steel, rod-type stainless steel
- Process connection: 1/8", 1/4", 3/8", 1/2" optional
- Electrical connection: Hirschmann DIN 43650, M12 aviation plug, PG connector, cable outlet
- Accuracy class: 0.1% FS / 0.2% FS / 0.5% FS / 1.0% FS
- Power supply: 10–30V DC
- Pressure range: -100 kPa to 100 MPa (customizable)
