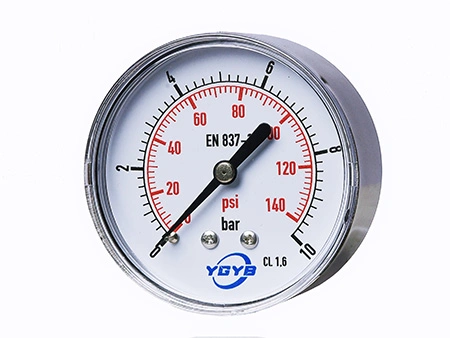

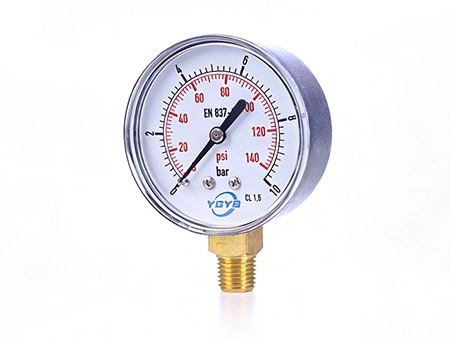

112B Bourdon Tube Pressure Gauge
(1.5"/2.0" /2.5" /4")
Product Details
- Accuracy class: ±2.5%, ±1.6%, ±1.5%
- Nominal dial size: 1.5" (40mm), 2.0" (50mm), 2.5" (63mm), 4" (100mm)
- Pressure range: Vacuum to 400 bar (6000 psi), customizable within this range
- Process connection: 1/8", 1/4", 3/8", 1/2", NPT, BSP, BSPT, M12×1.5, M20×1.5 (optional)
- Case material: Stainless steel
- Bezel: No bezel
- Window material: Plastic
- IP protection rating: IP54, IP40

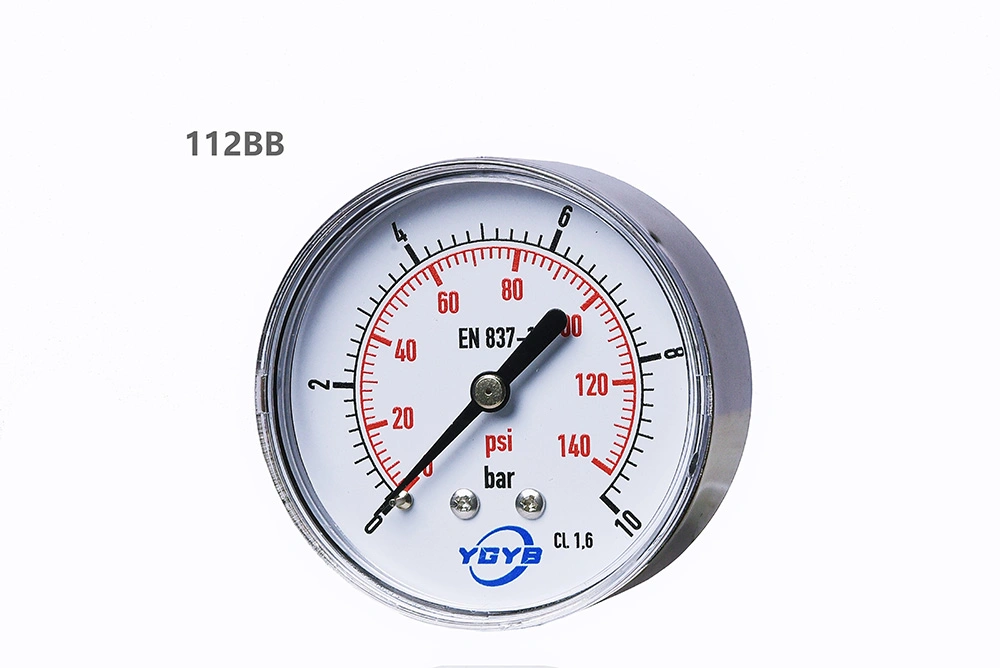

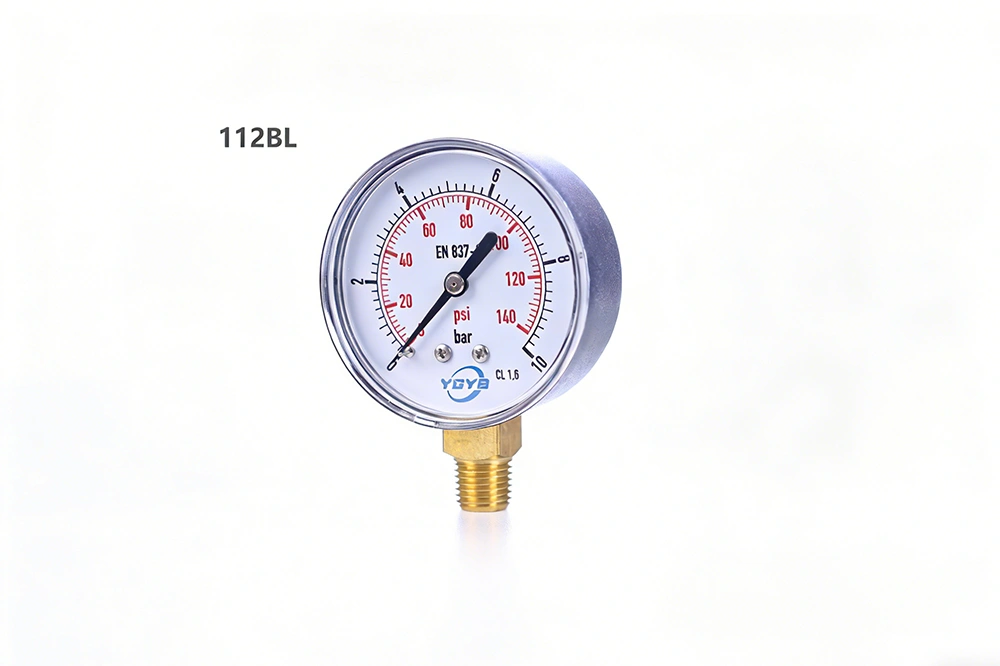

- Mounting: Bottom mount / back mount
Customization
- Logo printing on dial face
- Scale units: bar/psi, MPa/kg/cm², kPa/psi
- Pressure range customization (e.g. 0–1.6 bar or non-standard ranges)
- Thread options: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)Case material: black steel, chrome-plated steel, stainless steel, or plastic
- Window material: glass, tempered glass, polycarbonate (PC), acrylic
- Accuracy class options: 1.0 / 1.5 / 1.6 / 2.5
Applications
- Pneumatic systems, compressors, and compressed air systems
- Fluid media that will not clog the connection port or corrode copper alloys
