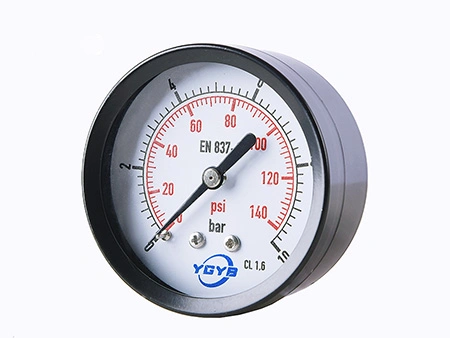

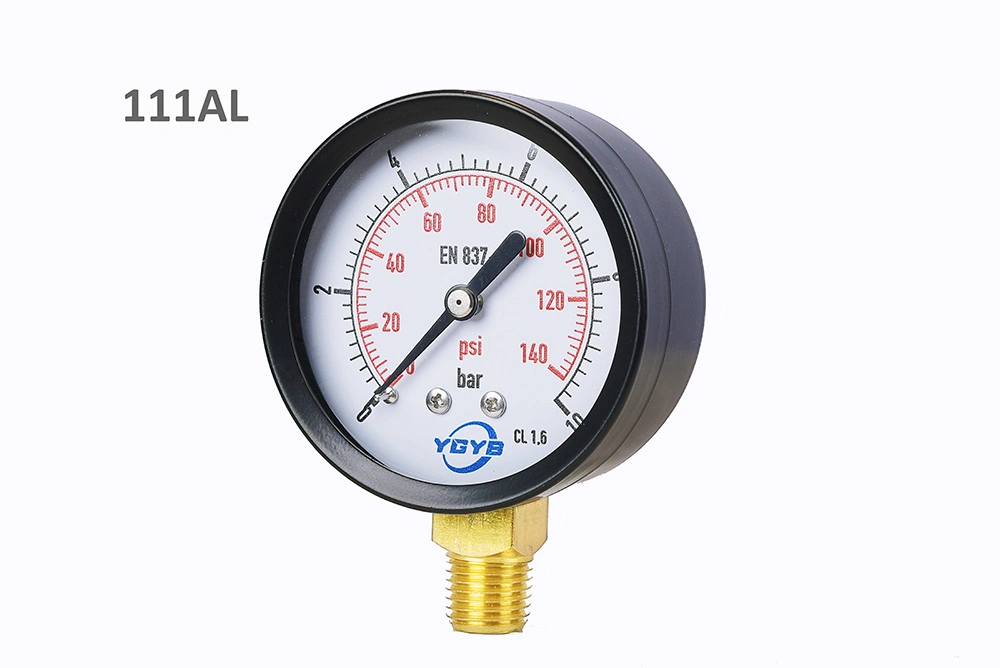

111A General-Purpose Pressure Gauge (1.5"2.0"2.5"/3"/4"/6"/8")
Product Details
- Accuracy class: ±2.5%, ±1.6%, ±1.5%, ±1%
- Nominal dial size: 1.5" (40mm), 2.0" (50mm), 2.5" (63mm), 3" (75mm), 4" (100mm), 6" (150mm), 8" (200mm)
- Pressure range: Vacuum to 400 bar (6000 psi), customizable within this range
- Process connection: 1/8", 1/4", 3/8", 1/2", NPT, BSP, BSPT, M12×1.5, M20×1.5 (optional)
- Case material: Black steel, chrome-plated steel, or optional finishes
- Bezel material: Black steel or chrome-plated steel
- Window material: Plastic or glass
- IP protection rating: IP40, IP54

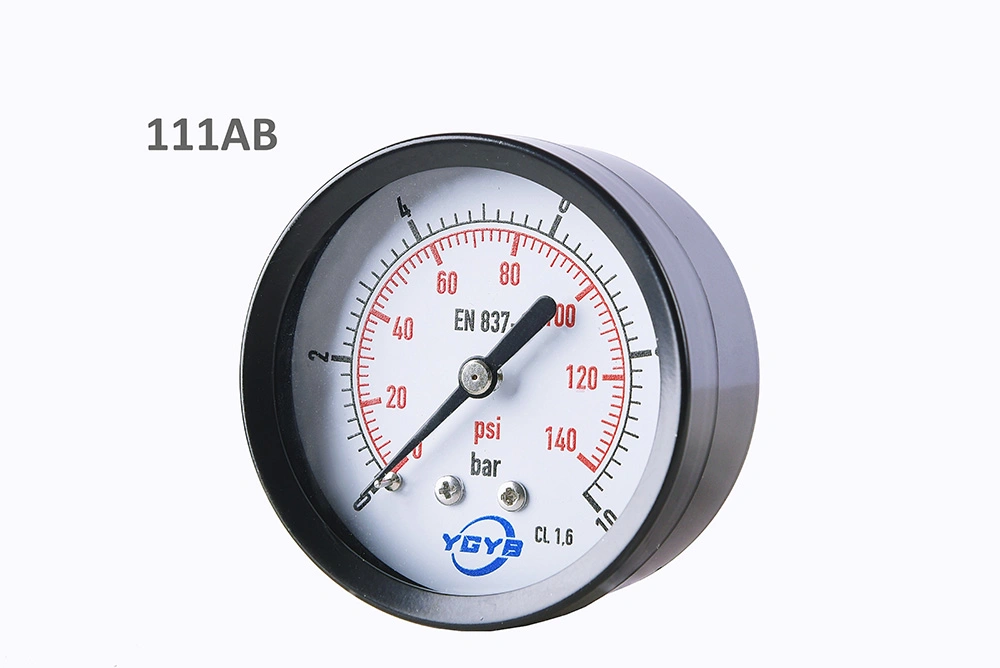

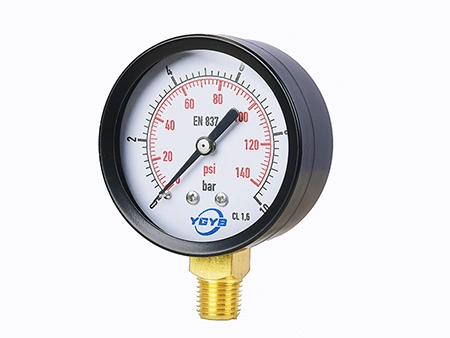

- Mounting: Bottom mount / back mount

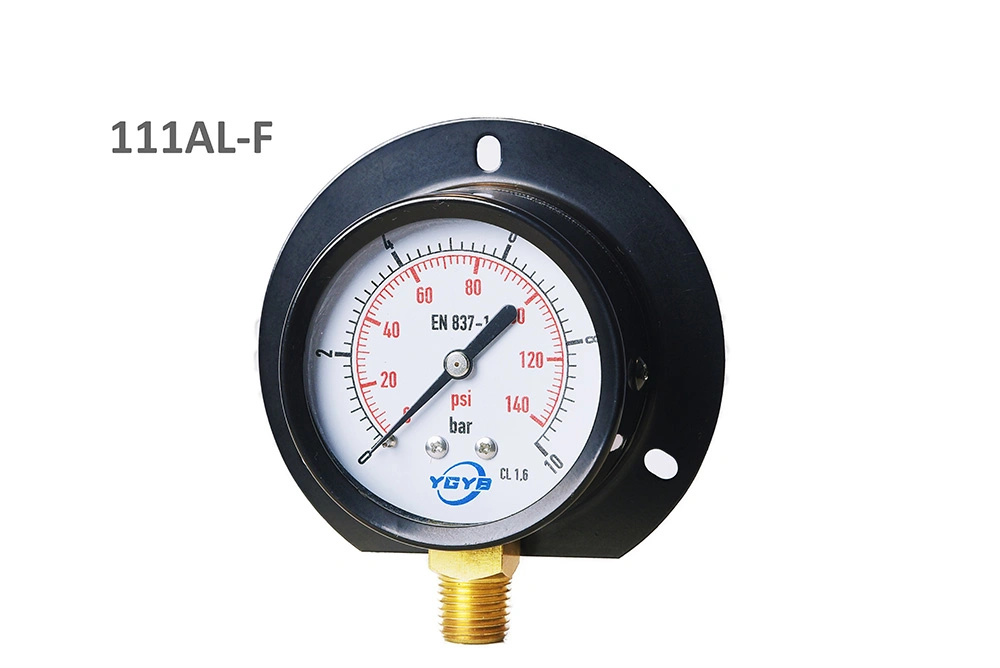

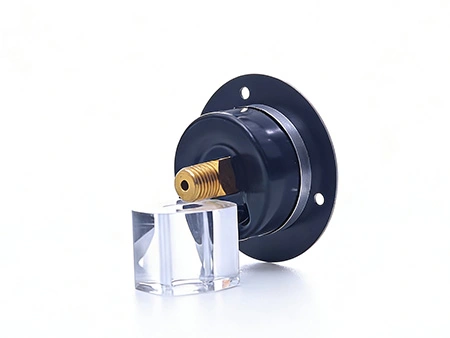

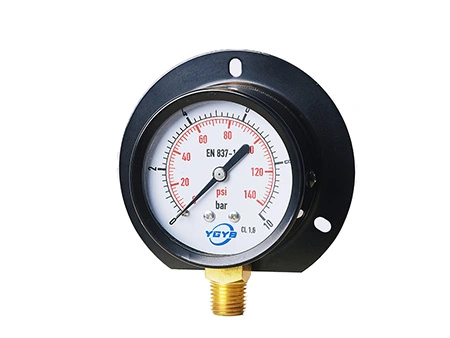

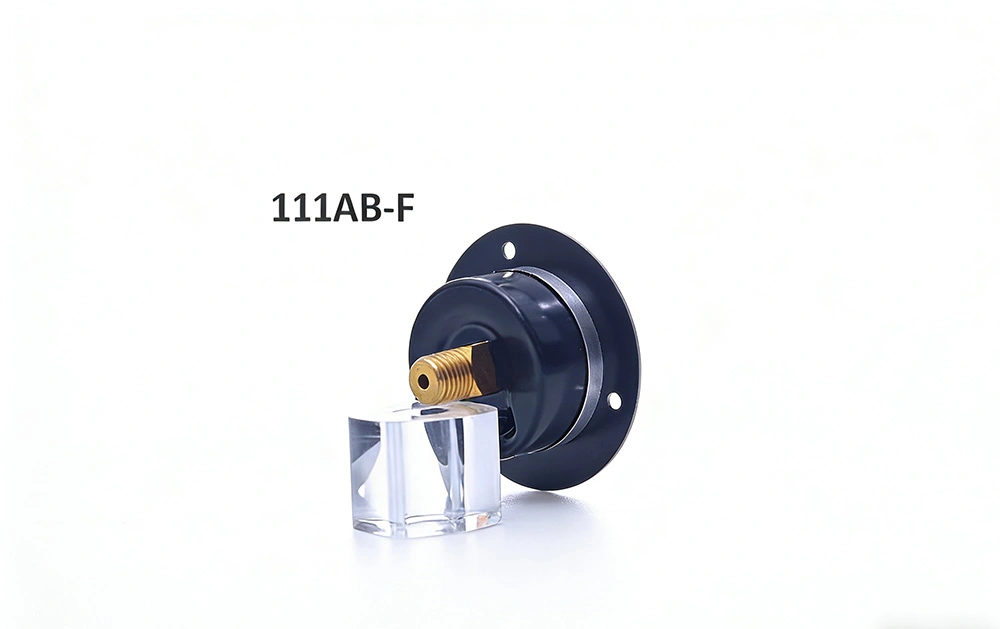

- Flange option: Available for both mounting styles
Customization
- Logo printing on dial face
- Scale units: bar/psi, MPa/kg/cm², kPa/psi
- Pressure range customization (e.g. 0–1.6 bar or non-standard ranges)
- Thread options: 1/8", 1/4", 3/8", 1/2", etc.

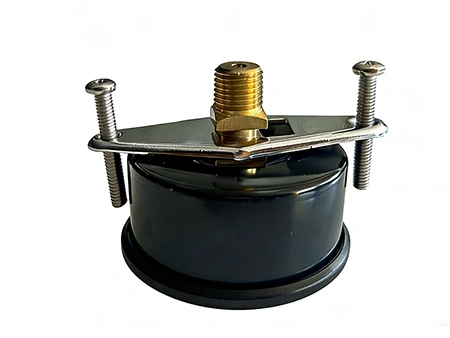

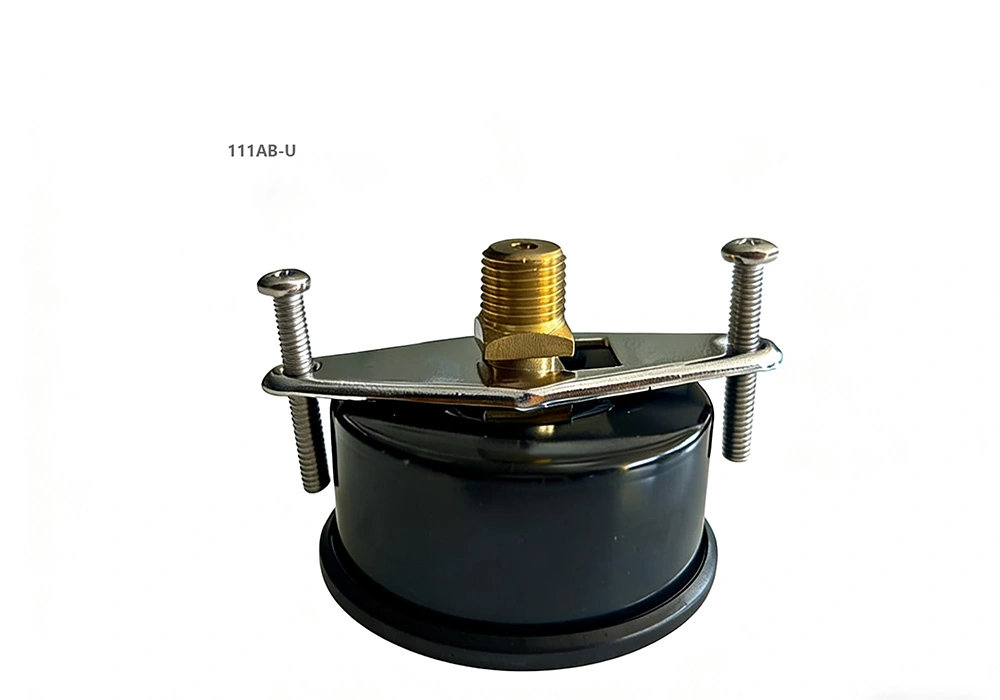

- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)Case material: black steel, chrome-plated steel, stainless steel, or plastic
- Window material: glass, tempered glass, polycarbonate (PC), acrylic
- Accuracy class options: 1.0 / 1.5 / 1.6 / 2.5
Applications
- Pneumatic systems, compressors, and compressed air systems
- Fluid media that will not clog the connection port or corrode copper alloys
Installation Dimensions
