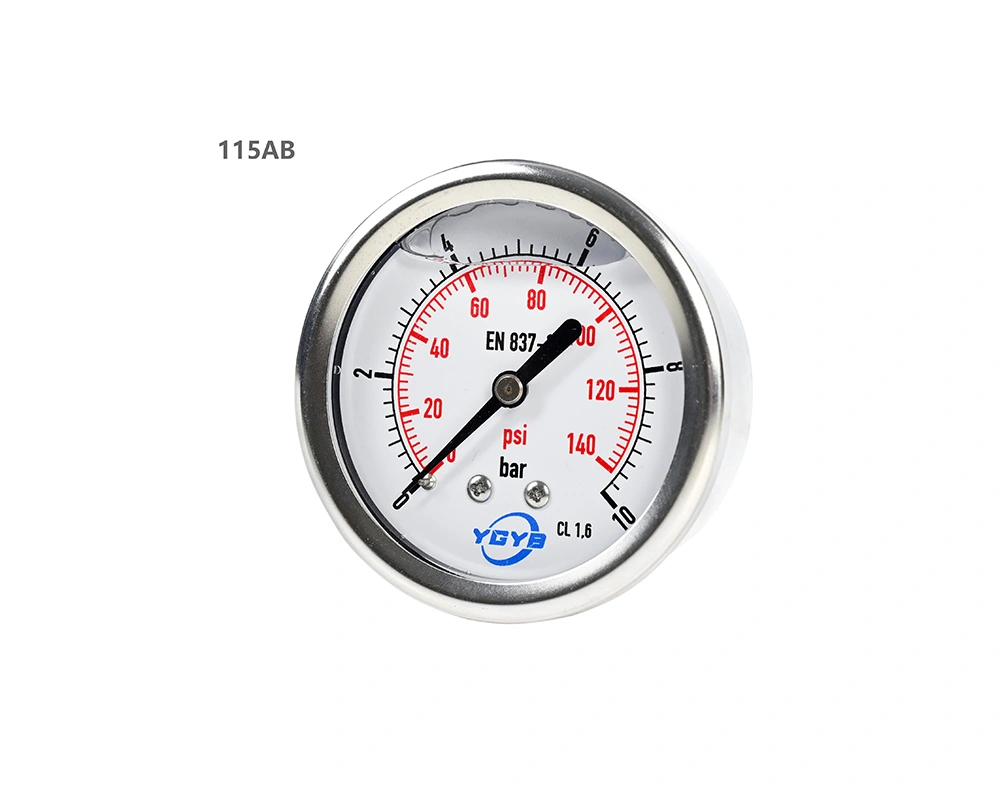

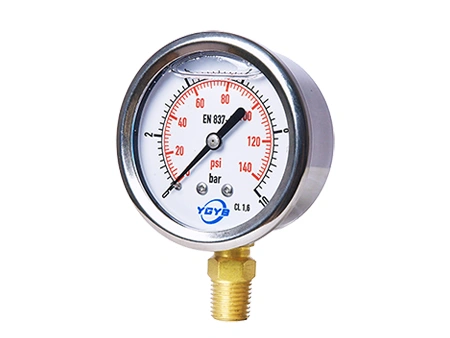

115A Liquid Filled Gauge (1.5"/2.0"/2.5"/3"/4")
Product Details
- Accuracy class: ±2.5%, ±1.6%
- Nominal dial size: 1.5”(40mm), 2.0”(50mm), 2.5”(63mm), 3”(80mm), 4”(100mm)
- Pressure range: Vacuum to 1000bar (15000psi), customizable within the range
- Process connection: 1/8”, 1/4”, 3/8”, 1/2”, NPT, BSP, BSPT, M12*1.5, M20*1.5 (optional)
- Filling liquid: Glycerine or silicone
- Case material: Polished or matte stainless steel
- Ring material: Stainless steel (crimped ring)
- Window material: Polycarbonate or safety glass
- IP protection rating: IP65
- Mounting: Bottom mount / back mount / panel mount
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.

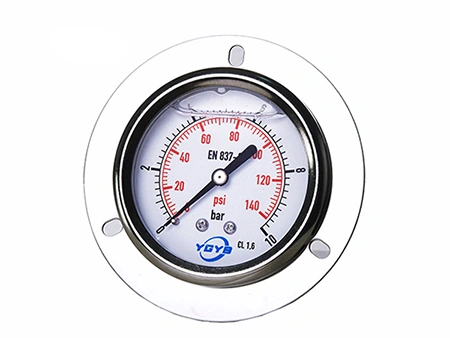

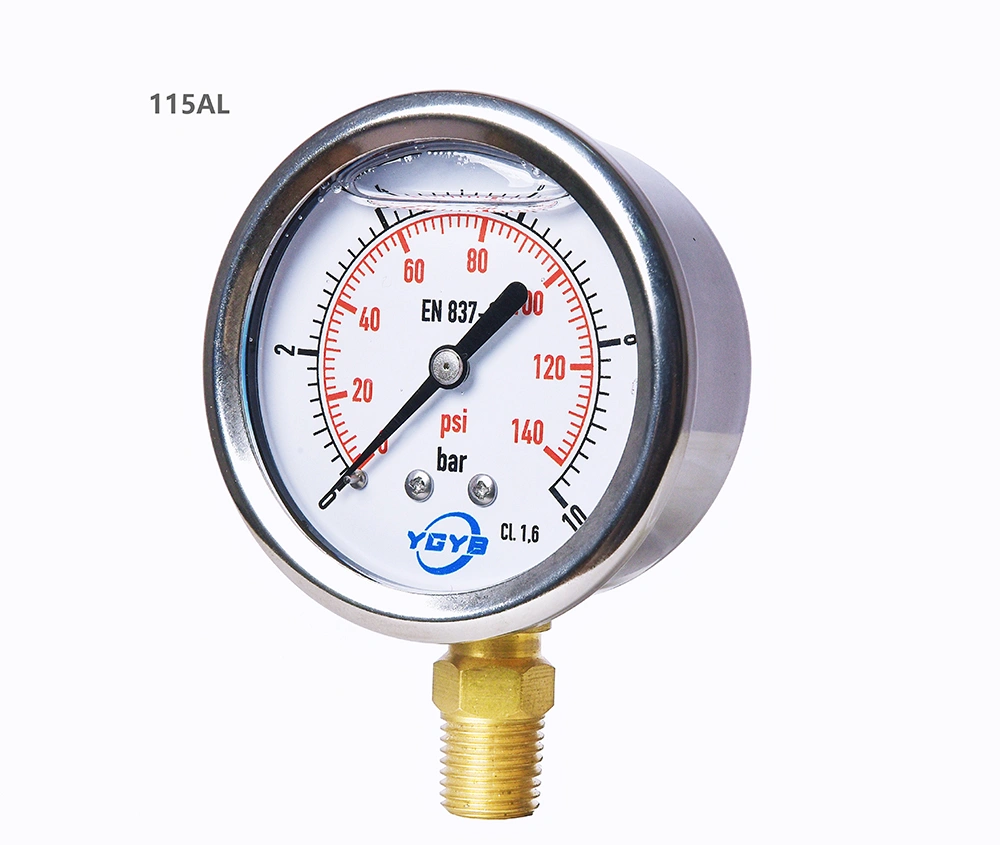

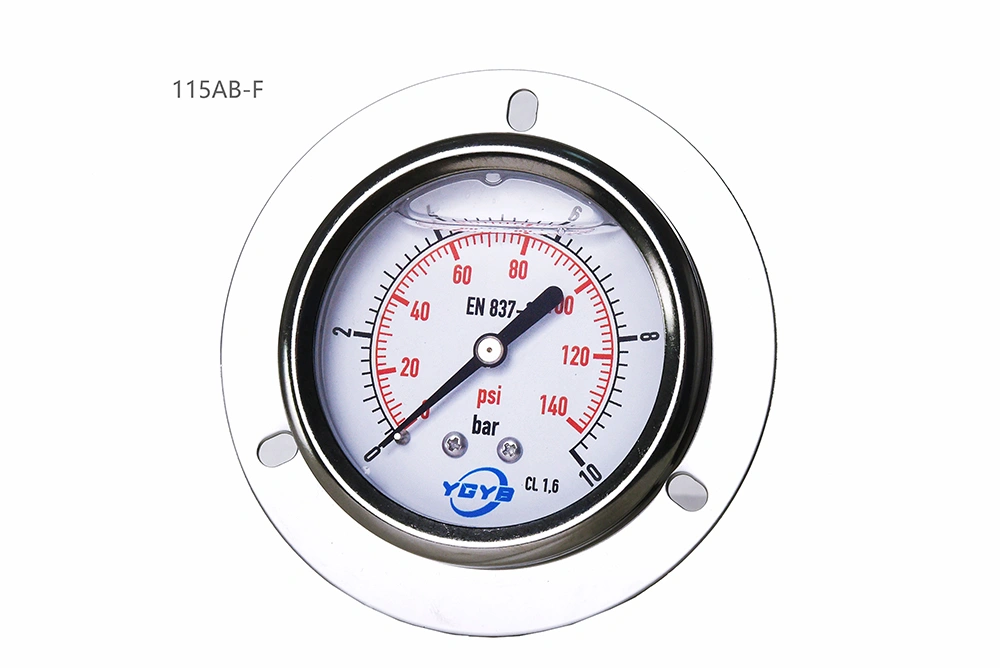

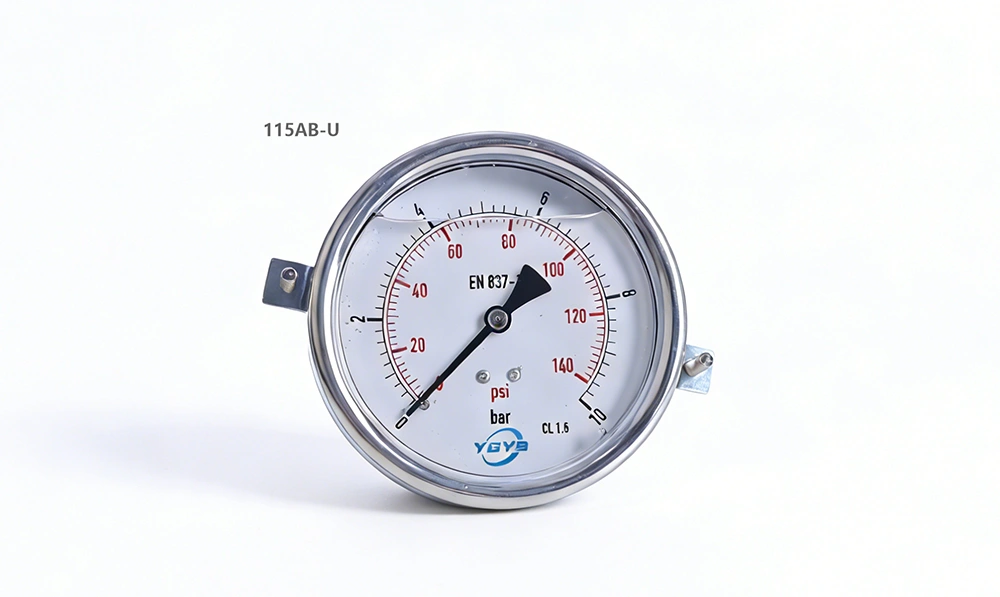

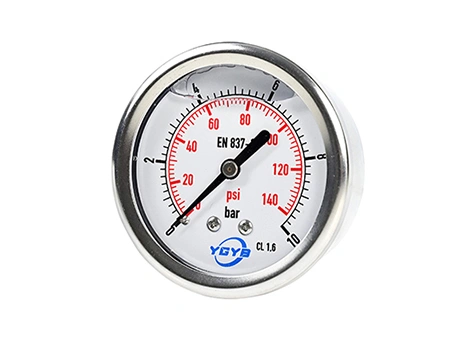

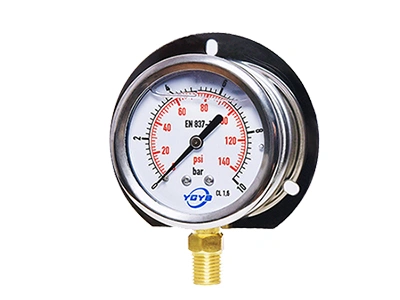

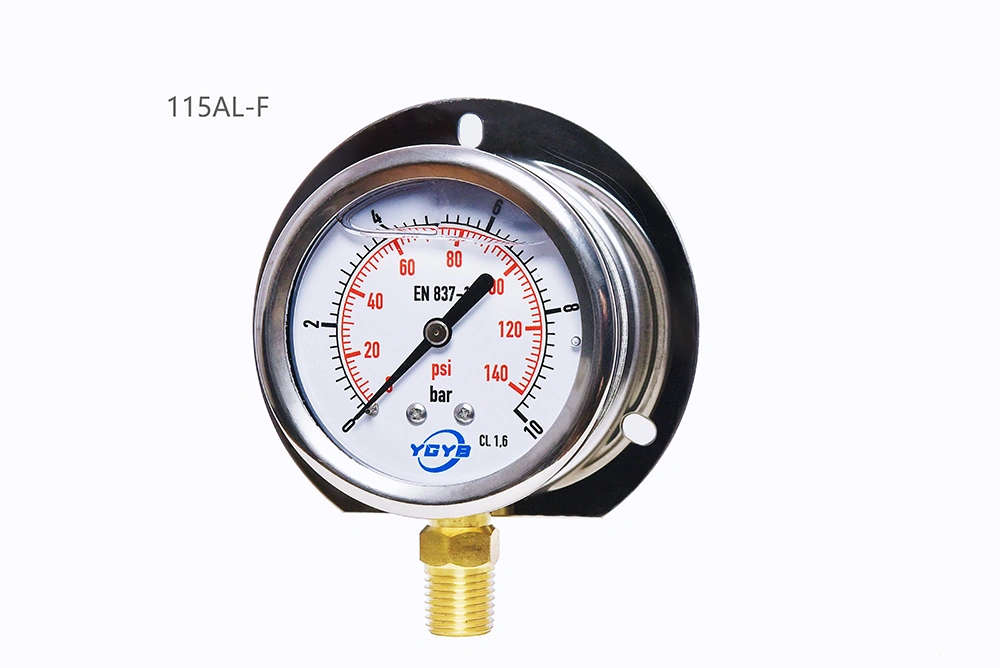

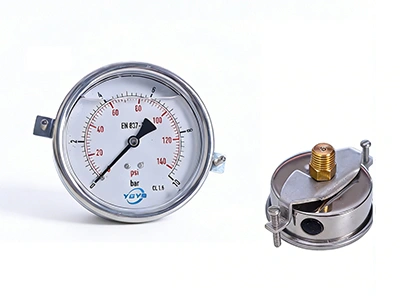

- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
- Hydraulic and pneumatic systems, compressors, and compressed air systems
- Fluid media that will not clog the pressure connection or corrode brass components
- Applications requiring protection against vibration and pressure pulsation
Installation Dimensions
