Liquid Filled Pressure Gauges

115OP Oil Filled Pressure Gauge (2.5"/4")

  • Certifications
  • Certifications

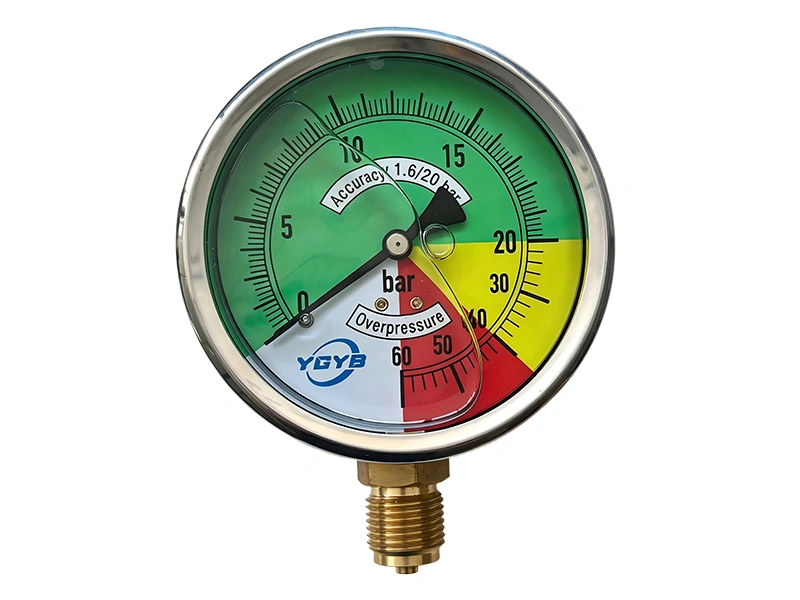

115OP-1 Oil Filled Pressure Gauge (Bottom Mount)

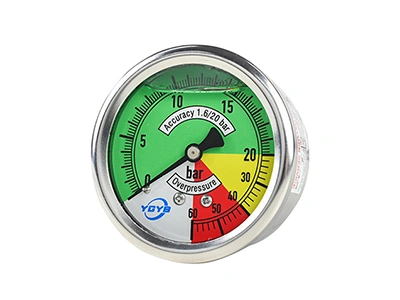

Oil Filled Pressure Gauge

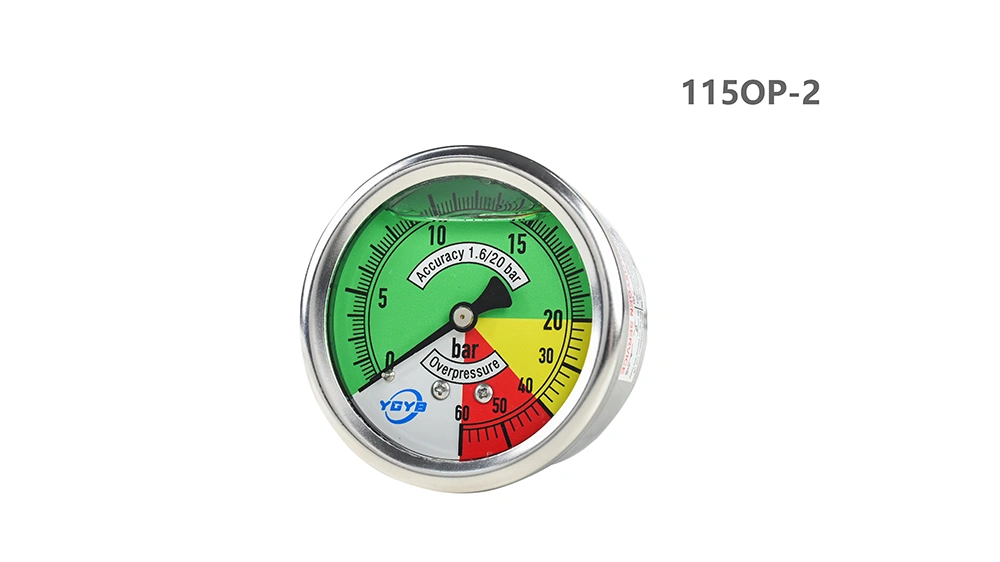

115OP-2 Oil Filled Pressure Gauge (Back Mount)
Product Details
  • Accuracy class: ±2.5%, ±1.6%
  • Nominal dial size: 2.5" (63mm), 4" (100mm)
  • Pressure range: 0–25 bar, 0–60 bar
  • Process connection: 1/8", 1/4", 3/8", 1/2", NPT, BSP, BSPT, M12×1.5, M20×1.5 (optional)
  • Filling liquid: Glycerine or silicone oil
  • Case material: Stainless steel
  • Bezel material: Stainless steel
  • Window material: Polycarbonate
  • IP protection rating: IP65
  • Mounting: Bottom mount / back mount
Applications

The 115OP oil filled pressure gauge combines overpressure protection with liquid-filled damping technology for reliable pressure measurement in applications exposed to pressure fluctuations, vibration, mechanical shock, and overpressure conditions. It is commonly used in hydraulic systems, pneumatic systems, compressors, pumps, and other equipment where pressure surges and vibration can affect measurement stability and instrument service life.

Installation Dimensions
