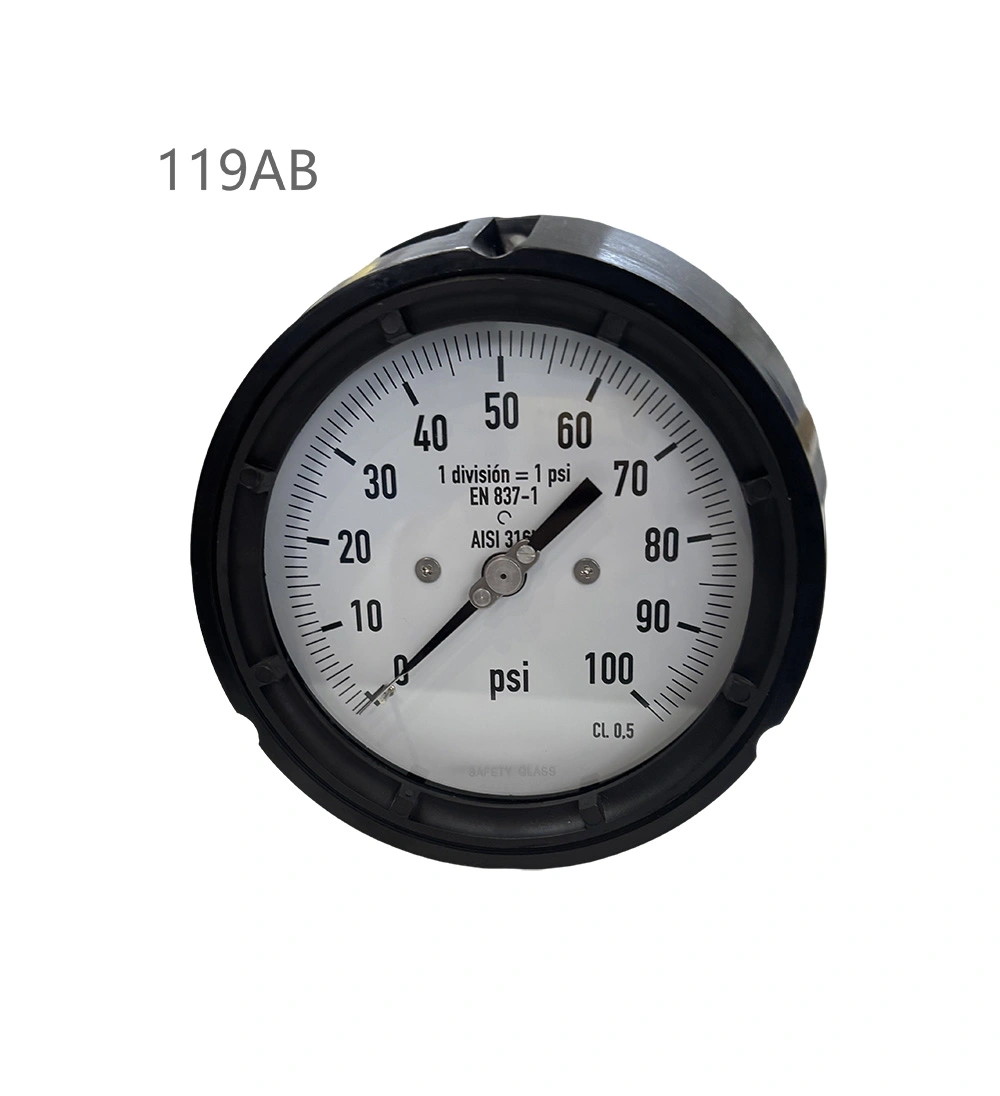

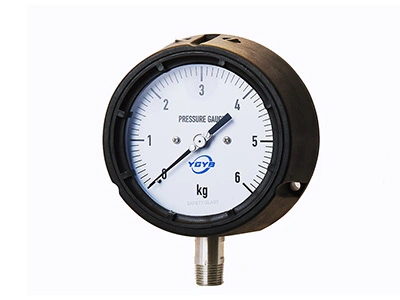

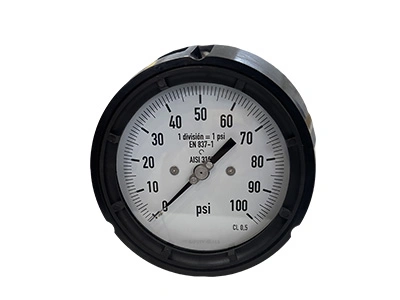

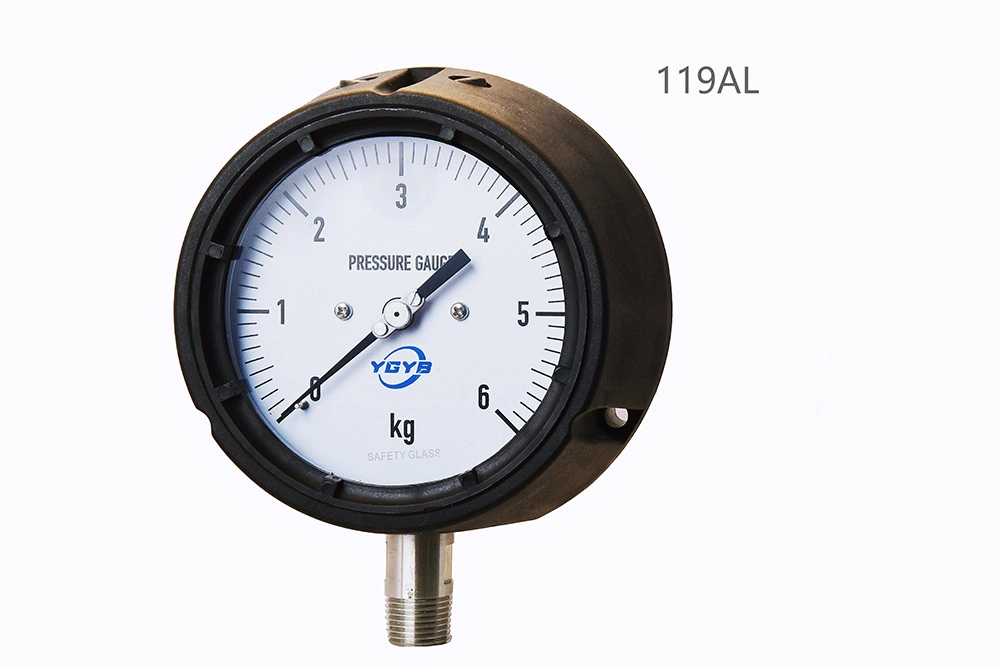

119A Corrosion Resistant Pressure Gauge
Product Details
- Accuracy class: ±1%, ±0.5%
- Nominal size: 4.5" (115 mm)
- Pressure range: Vacuum to 1000 bar (15,000 psi), customizable within this range
- Thread: 1/4", 3/8", 1/2", NPT, BSP, BSPT, M12×1.5, M20×1.5 optional
- Case material: Black PP or phenolic
- Ring material: PP
- Window material: Tempered glass or safety glass
- Protection grade: IP65
- Mounting: Bottom mount / back mount
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
Corrosion resistant pressure gauges are suitable for corrosive environments such as chemical processing and water treatment where the media are corrosive but not highly aggressive. They are also widely used in steam systems, high-temperature equipment, applications requiring electrically insulated housings, hydraulic systems, machine tools, and mining equipment.
