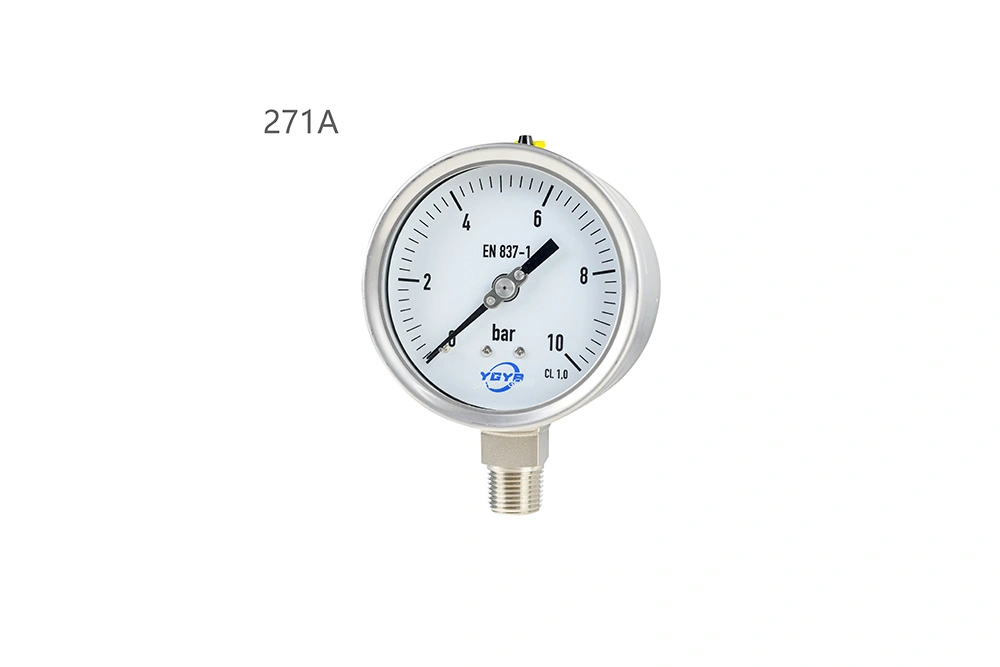

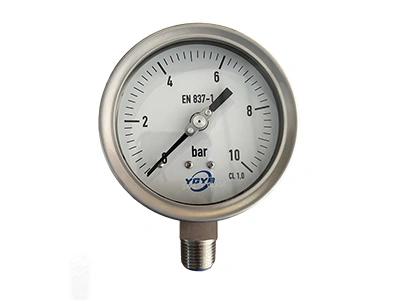

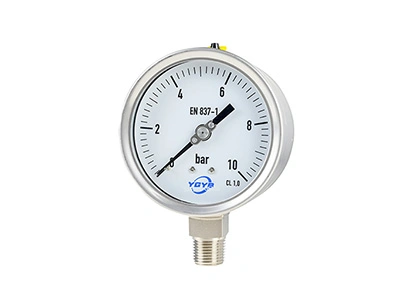

271A Safety Pattern Gauge
Product Details
- Nominal dial size: 2.5" (63mm), 4" (100mm), 6" (150mm)
- Case material: matted or polished stainless steel, solid front with blow-out back
- Bezel: bayonet type
- Mounting: lower mount
- Process connection: stainless steel
- Pressure element: stainless steel
- Movement: stainless steel
- Dial material: aluminum with custom scale and logo
- Pointer: aluminum, black or white (customized)
- Window material: safety glass
- Accuracy class: ±1%, ±1.6%
- Pressure range: vacuum to 1000 bar, customizable within this range
- IP protection rating: IP65
- Filling liquid: Glycerine, silicone, or no oil
- Permissible temperature: Ambient -40°C to +60°C
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Applications
Safety pattern stainless steel pressure gauges are designed with solid front construction and blow-out back safety design to reduce risk under overpressure conditions. They are suitable for high-risk industrial environments where pressure surges or system failures may occur, ensuring operator safety and controlled pressure release.
Installation Dimensions
