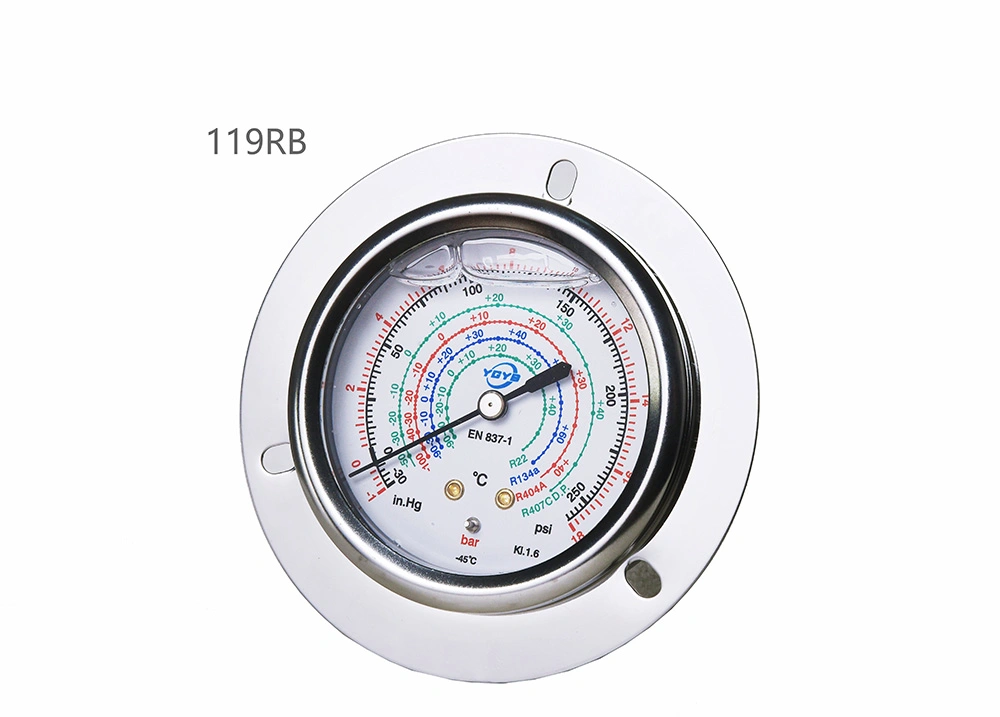

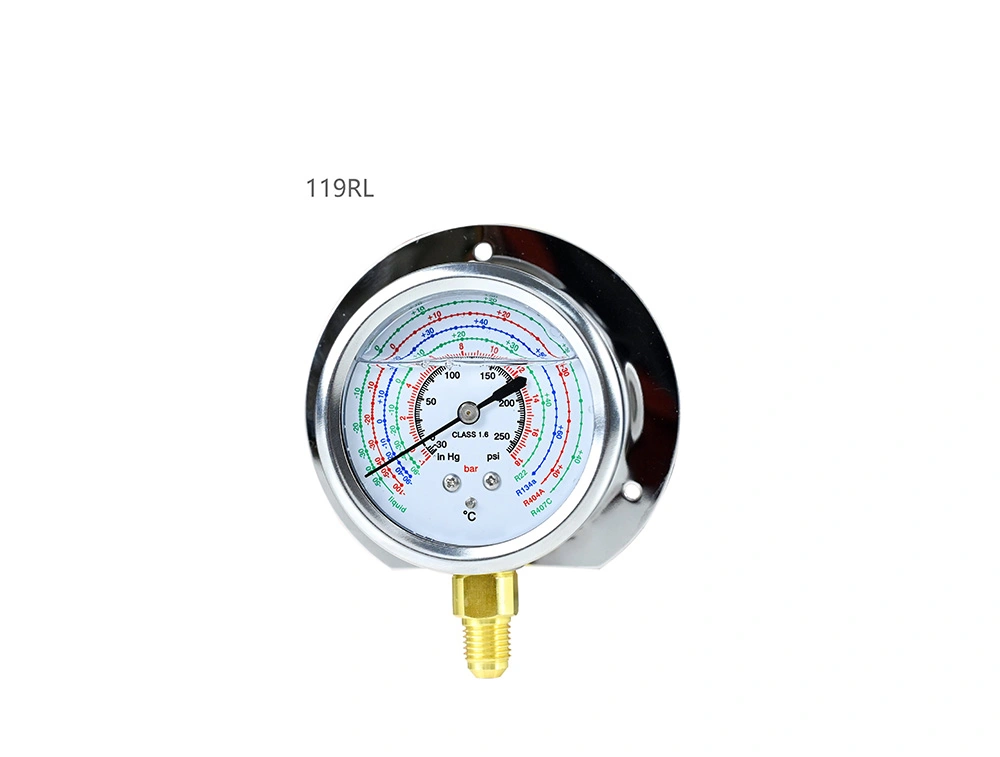

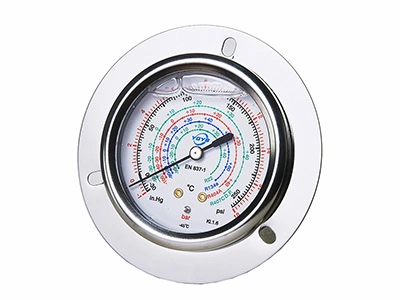

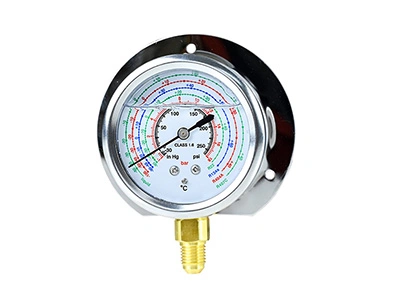

119RL\119RB Refrigerant Gauge
Product Details
- Nominal dial size: 2.5" (63mm), 3" (75mm), 4" (100mm)
- Case material: polished or matte stainless steel
- Bezel ring: crimp ring or bayonet bezel
- Thread: 7/16-20 UNF, 1/4" SAE
- Process connection: copper alloy lower mount with back flange or back mount with front flange
- Pressure element: copper alloy C-type
- Movement: copper alloy
- Dial material: aluminum with custom scale and logo
- Pointer: aluminum, black or white (customized)
- Window material: polycarbonate
- Accuracy class: ±1.5%
- Pressure range: -1–18 bar, -1–38 bar, -1–50 bar and related ranges
- IP protection rating: IP65
- Filling liquid: Glycerine or silicone oil
- Refrigerants: R22, R134A, R404A, R407C, R507C, R452A, R448A, R449A, R410A
Customization
- Logo: custom dial branding & OEM
- Scale: bar / psi, MPa / kg/cm² or kPa / psi
- Pressure range: standard ranges (e.g., 0-1.6 bar) or customized non-standard ranges
- Thread size: 1/8", 1/4", 3/8", 1/2", etc.
- Mounting: bottom mount (radial connection), back mount (axial connection), panel mount (front flange or rear flange)
- Window material: Polycarbonate (PC), tempered glass, acrylic
- Accuracy class: 1.5/1.6/2.5
Installation Dimensions
Applications
Refrigerant pressure gauge, also called air-conditioning charging gauge or cooling pressure gauge, is mainly used to measure pressure values in refrigeration systems for different types of refrigerants. The dial includes multi-color scale markings corresponding to common refrigerants such as R12, R134a, and R404A, allowing direct visualization of the saturation temperature of each refrigerant under specific pressure conditions.
- HVAC and refrigeration maintenance: used in air conditioners, refrigerators, and cold storage systems to measure refrigerant pressure and detect leakage or insufficient refrigerant levels.
- Refrigerant charging and recovery: used during charging operations to ensure correct refrigerant filling and during recovery to confirm proper vacuum conditions.
- Industrial refrigeration systems: used in chillers and commercial air-conditioning systems for routine pressure monitoring and stable system operation.
